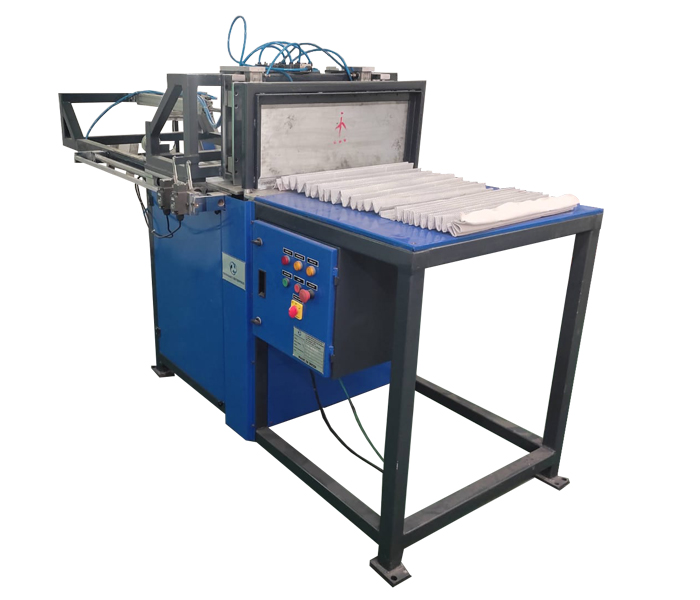

Pushbar Machine

Specifications:

• Maximum width of Pleating – 650mm

• Maximum Pleat depth – 300mm

• Minimum Pleat depth - 24mm

• Media roll mounting stand

• Set of idle guide rods for guiding and tensioning

• Shaft fitted with collar for media guiding

• All pneumatic cylinder fitted with flow control valves

• Blade grips the media and pushes forward for pleating

• Pleat pack and batch counter

• Quick change of pleat depth

• The speed of pleating depends on the pleat depth to be pleated and the wire mesh material details (diameter of wire, pitch of wire and type used.)

• pleated media guiding and back pressure arrangement

• facility to adjust the guide along the width

• MS Fabricated structure

• All pneumatics SMC/ Janatics make

• Safety cover fitted over pneumatic plates

• Safety switches wherever required

• All cover guards fitted with safety switch

• Programmed control Panel

• Terminal will be of Wago/ Pheonix make

• All pneumatics will be of JANATICS /SMC

• Cable will be of POLYCAB / RR make

• Control panel for the above as per International Electrical norms

• PLC based control panel for the above
