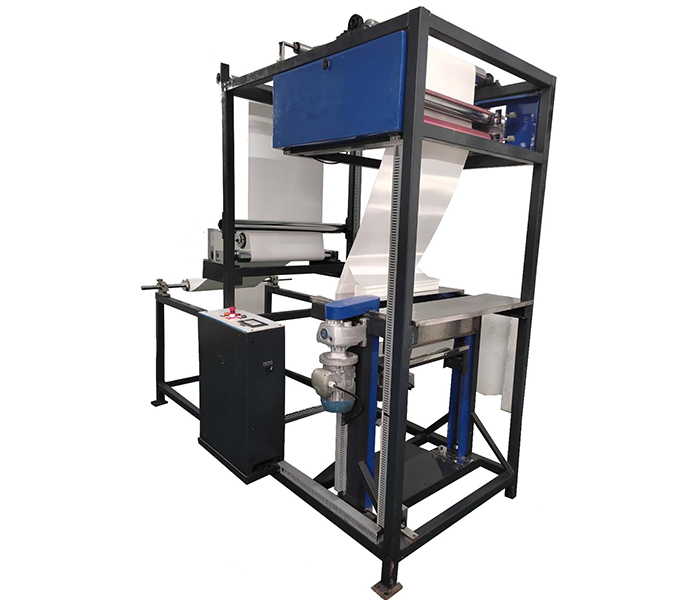

Deep Heap Filter Making Machine

Specifications

• Model Number : DBHF

• Maximum width of rollers 700mm.

• Paper roll mounting stand with brakes.

• Set of idle and guiding rollers

• Set of 2 cutters

• 2 cutters will be continuous

• Set of Idle rollers for paper guiding

• Set of pulling rollers

• Set of pulling rollers driven by the geared motor

• 2 Set of marking rollers

• Marking blade width 6mm ( Standard)

• Facility to change the blades as per nos of pleats per filter

• Changeable Blades of 3.5mm (Changeable as per your requirement in the same set of rollers)

• Pleat depth to change from the MOVING TROLLY

• AC drive geared motor unit of 1.0 HP, 220 V, 1 phase.

• Quick return of sinking Platform

• Online separator insertion in the pack by operator

• MS fabricated frame work

• SS platform for stacking separators.

• Vertical sinking platform with variable drive unit.

• Vertical travel of platform 650mm

• Sinking platform to stop at preset pleat counts

• Control interface will have speed control knobs and the switches by which the operator can control the operation. With easy approach to the operator. Operator can operate in Auto /manual mode.

• Gear boxes of ROTOMOTIVE make

• Terminal will be of Wago/ Pheonix make

• Cable will be of POLYCAB/RR CABLE make

• Power: 230 V, 1Ph, 50 Hz, 3.5 Kwatts

• Control panel for the above as per electrical norms
